Name: Scodix Business Cards
Brand: Betterway Systems Co., Ltd

Design Guideline

If you will be designing artwork for this product, please read through the guideline as our PDF requirements are quite specific. This guide will walk you through the document setup instructions and also the PDF Export process. We recommend reading through our User Guide for any further information.

Image Resolution Guide

When using imagery in any design for print, resolution is one of the most important factors to enable a high quality print output.
Refer to our User Guide for more information.

Image with a resolution of 300dpi
Image which was originally 72dpi and upscaled to 300dpi using Photoshop
Image which was originally 72dpi and printed at 72dpi

Spot Colours / Pantone Colours

Our system is based on a 4 colour printing system (Cyan, Magenta, Yellow and Black). Please convert any spot colours that you may have used in your artwork to CMYK. If your file contains spot colours, these will not be printed.

Adobe Illustrator Guide

Create your document size as per the template instruction. This document size is also the Trim Size. Enter the amount of artboards to suit the product you are designing for. 1 Artboard is the same as one sided printing. 2 Artboards are double sided etc.

Here you will need to enter the documents Bleed setting. For a business card, this is 2mm Bleed. Please refer to the product guideline you are designing for, as bleed values can vary.

Select CMYK for the colour mode and Raster Effects High (300ppi).

Scodix Guideline

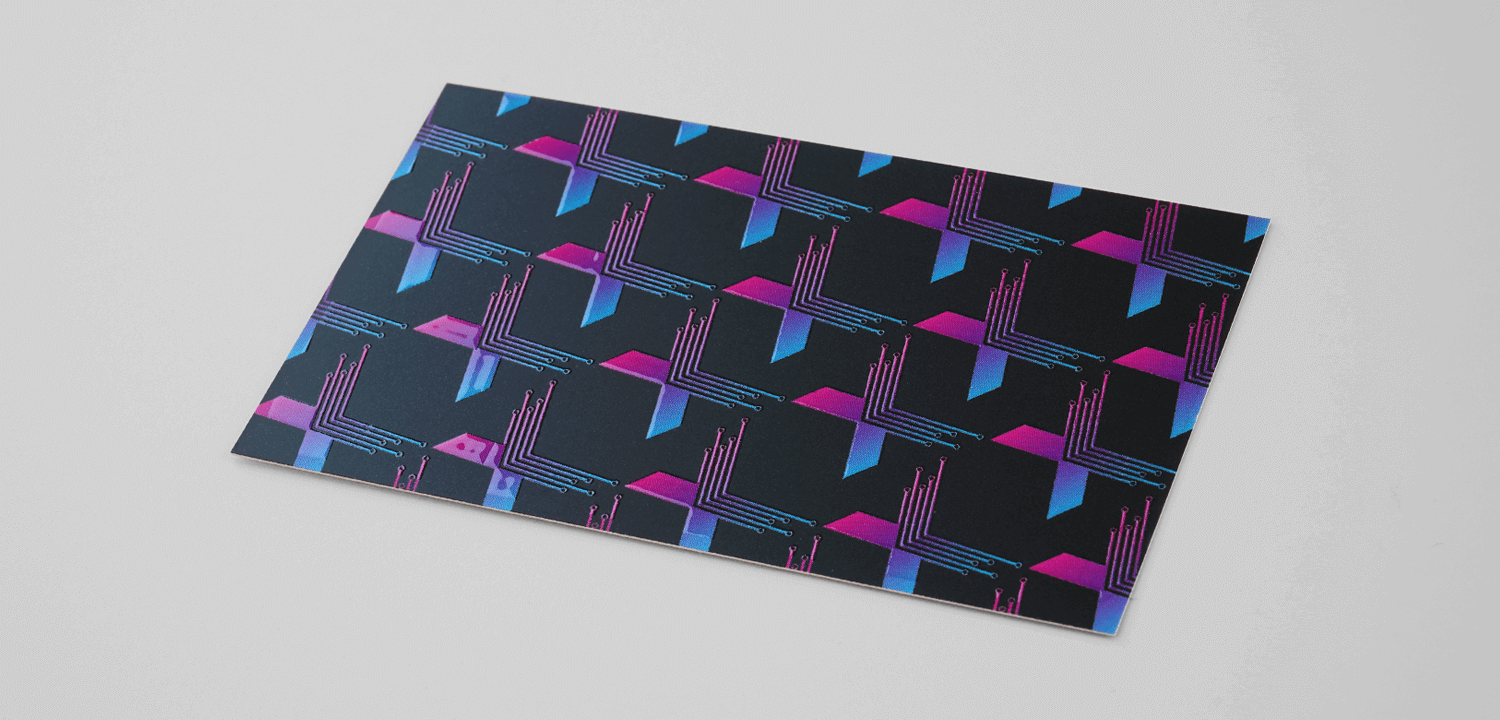

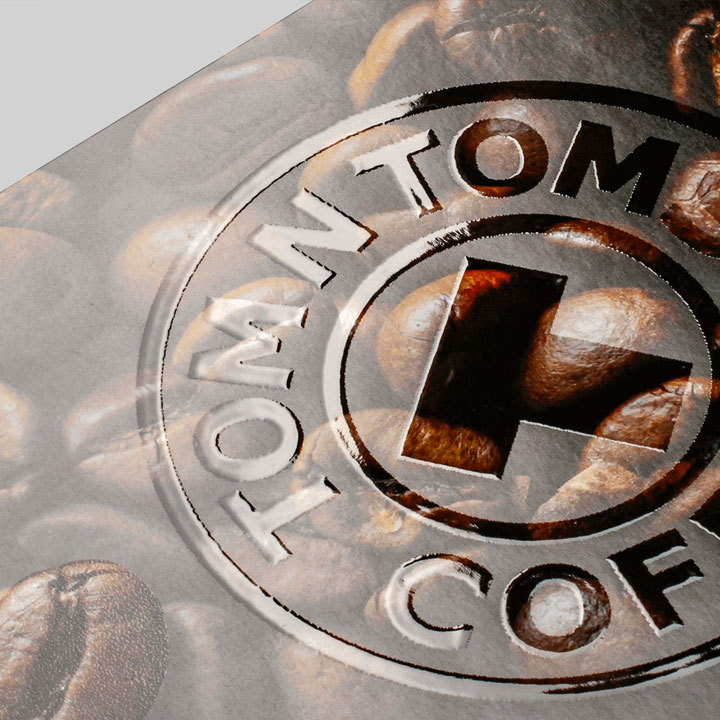

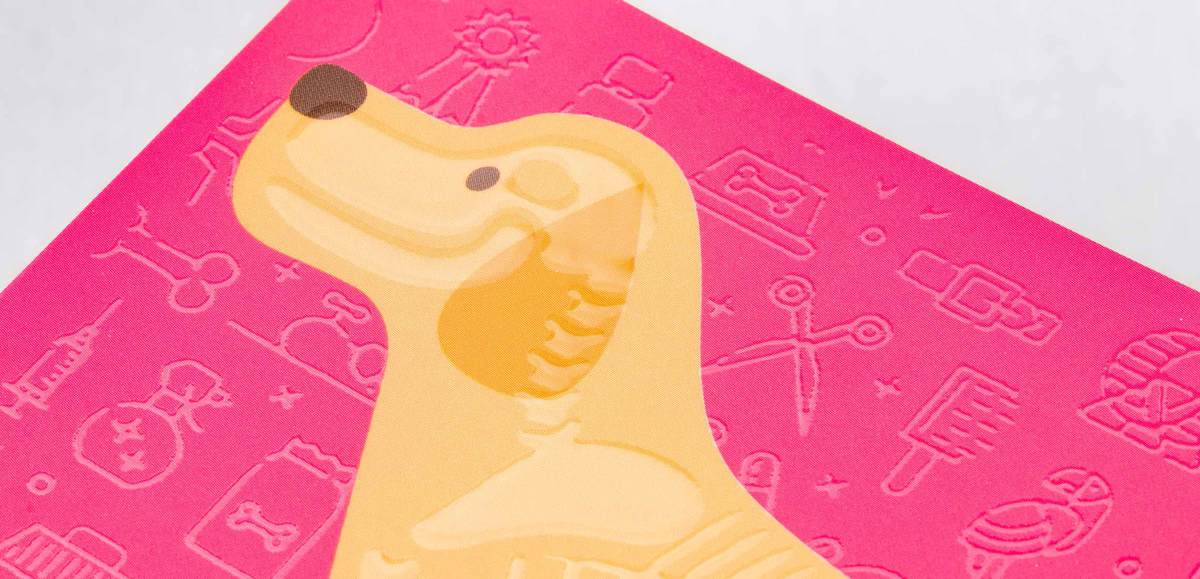

Scodix is a print finish that adds a luxurious look and feel to ordinary print runs by producing a clear raised ink. It is a digital enhancement printed on top of an image after the printing and laminating process.

Scodix can only be created if you make a ‘Scodix’ Layer in your artwork, using Adobe Illustrator or Indesign only.

To do this; create a new layer in Illustrator or Indesign and name it ‘Scodix’. In this layer use 100% Black colour to create your artwork that requires the Scodix finish. Everything that is on this layer in black, will be printed with Scodix.

Please note Scodix cannot bleed outside of the trim area. (Please leave 3mm from the edge of the Scodix application to the product trim area). Scodix cannot be applied over any score/fold areas/performations. For the best results, avoid applying Scodix to thin lines, small text or finely detailed artwork.

Below this layer is your ‘Printing’ layer, here you can place all text and images that will be printed in full colour ink (not Scodix).

When your design is ready to be exported to PDF, It is important to export using the below settings.

Punching Guideline

Punching is a print finish that simply punches a hole into a flat printed card sheet. For example, swing tags for gifts or clothing. A string can then be threaded through the hole later.

Punching can only be created if you make a ‘Punch’ Layer in your artwork, using Adobe Illustrator or Indesign only.

To do this; create a new layer in Illustrator or Indesign and name it ‘Punch’. In this layer, use a 100% Black stroke colour to create a circle where you want the hole to be punched. The circle must be the same size as the available holes with punching.

Remeber to select the same size hole as your design when placing your order.

Below this punch layer, you can place any other special layers, (eg. Creasing, Scodix, Lasercut, White printing, etc.). Place your ‘Printing’ layer below any special layers, here you can place all text and images that will be printed in full-colour ink.

When your design is ready to be exported to PDF, It is essential to export using the below settings.

Rounded Corners

Give your business card a smooth finish with Rounded Corners.
Choose a radius of 4mm or 6mm.

Exporting PDF’s

Adobe PDF Preset : Press Quality

Compatibility: Acrobat 6 (PDF 1.5)

Preserve Illustrator Editing Capabilities

Create Acrobat Layers from Top-Level Layers

Enter ‘Marks and Bleeds’ Section last

Use Document Bleed Settings

Save PDF
